Powersoft Endstufen für LSS Beschallungssysteme - Touring

Produkte
Powersoft X Endstufenserie für LSS Beschallungssysteme
Modelle: X4, X4L, X8
Anwendung: Line Array / Hornsysteme, Point Source / Subwoofersysteme, Mobil / Festinstallation:

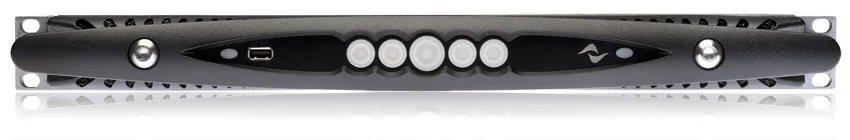

Powersoft X4
Professionelle Vierkanal Touring Endstufe
Varianten:
X4 DSP+DANTE
X4 DSP+ETH

4x 5200 Watt an 2 Ohm
4x 4000 Watt an 2,7 Ohm
4x 3000 Watt an 4 Ohm
4x 1600 Watt an 8 Ohm

2x 10400 Watt gebrückt an 4 Ohm
2x 6000 Watt gebrückt an 8 Ohm
Peak total output, alle Kanäle 20000 Watt
Maximale Ausgangsspannung 175 Vpeak
Maximale Ausgangsstrom 130 Apeak

19" / 1 HE, Tiefe 495mm, Gewicht: 15 kg
4 Jahre Garantie

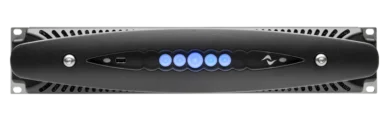

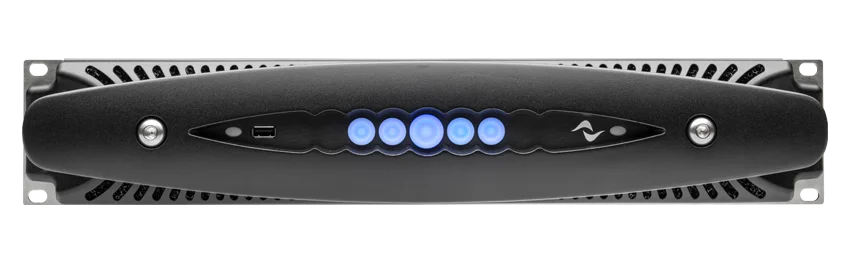

Powersoft X4L
Professionelle Vierkanal Touring Endstufe
Varianten:
X4L DSP+DANTE


4x 8200 Watt an 2 Ohm (max. 10000 Watt asym.)
4x 7700 Watt an 2,7 Ohm (max. 9600 Watt asym.)
4x 6800 Watt an 4 Ohm (max. 8400 Watt asym.)
4x 4800 Watt an 8 Ohm (max. 5000 Watt asym.)

Maximale Leistung (alle Kanäle genutzt):
32800 Watt (sym.), 25000 Watt (asym.)
Maximale Ausgangsspannung 300 Vpeak
Maximale Ausgangsstrom 140 Apeak


19" / 2 HE, Tiefe 495mm, Gewicht: 24 kg
4 Jahre Garantie

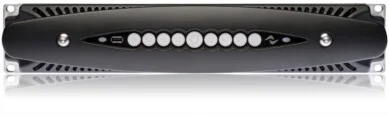

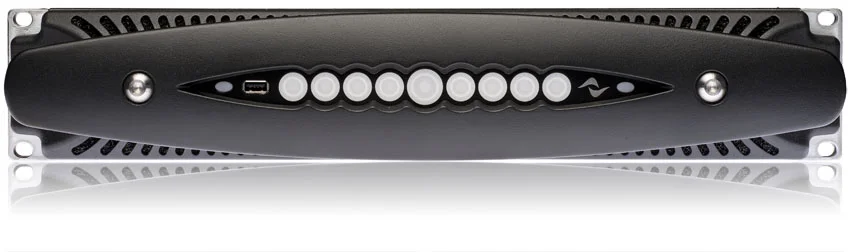

Powersoft X8
Professionelle Achtkanal Touring Endstufe
Varianten:
X8 DSP+DANTE
X8 DSP+ETH

8x 5200 Watt an 2 Ohm
8x 4000 Watt an 2,7 Ohm
8x 3000 Watt an 4 Ohm
8x 1600 Watt an 8 Ohm

4x 10400 Watt gebrückt an 4 Ohm
4x 6000 Watt gebrückt an 8 Ohm
Peak total output, alle Kanäle 40000 Watt
Maximale Ausgangsspannung 175 Vpeak
Maximale Ausgangsstrom 130 Apeak

19" / 1 HE, Tiefe 495mm, Gewicht: 24 kg
4 Jahre Garantie

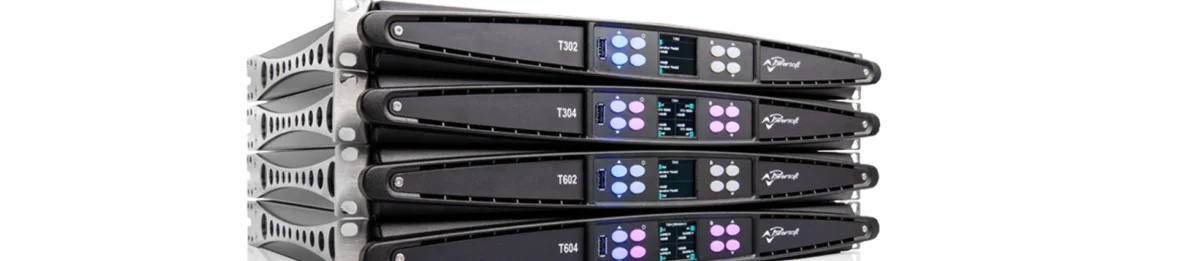

Powersoft T Endstufenserie für LSS Beschallungssysteme
Modelle: T302, T602, T304, T604
Anwendung: Line Array / Hornsysteme, Point Source / Subwoofersysteme, Mobil / Festinstallation:

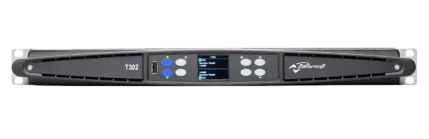

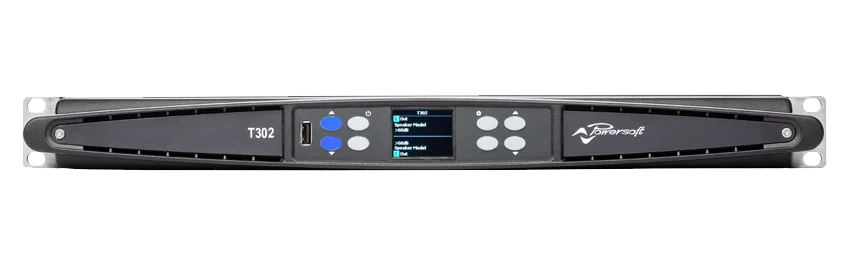

Powersoft T302
Professionelle Zweikanal Touring-Endstufe
Varianten:
T302 DSP+DANTE

2x 1500 Watt an 2 Ohm (max. 1600 Watt asym.)
2x 1500 Watt an 4 Ohm (max. 2200 Watt asym.)
2x 1200 Watt an 8 Ohm (max. 1300 Watt asym.)

1x 3000 Watt gebrückt an 4 Ohm
1x 3000 Watt gebrückt an 8 Ohm
Maximale Ausgangsspannung 145 Vpeak
Maximale Ausgangsstrom 50 Apeak

19" / 1 HE, Tiefe 405mm, Gewicht: 6,7 kg
4 Jahre Garantie

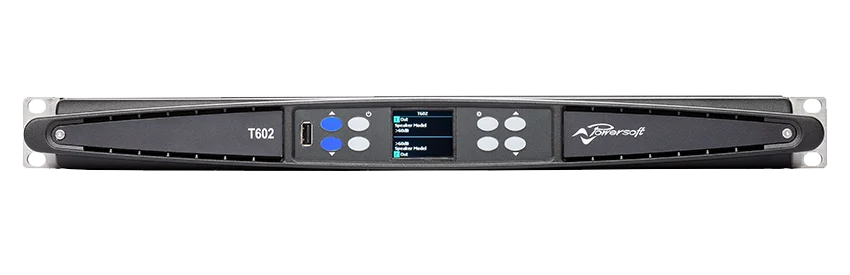

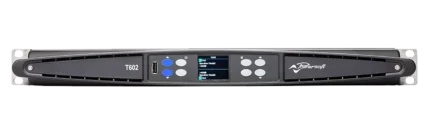

Powersoft T602
Professionelle Zweikanal Touring-Endstufe
Varianten:
T602 DSP+DANTE

2x 3000 Watt an 2 Ohm (max. 3800 Watt asym.)
2x 2500 Watt an 4 Ohm (max. 2500 Watt asym.)
2x 1300 Watt an 8 Ohm (max. 1400 Watt asym.)

1x 6000 Watt gebrückt an 4 Ohm
1x 5000 Watt gebrückt an 8 Ohm
Maximale Ausgangsspannung 145 Vpeak
Maximale Ausgangsstrom 100 Apeak

19" / 1 HE, Tiefe 405mm, Gewicht: 7,5 kg
4 Jahre Garantie

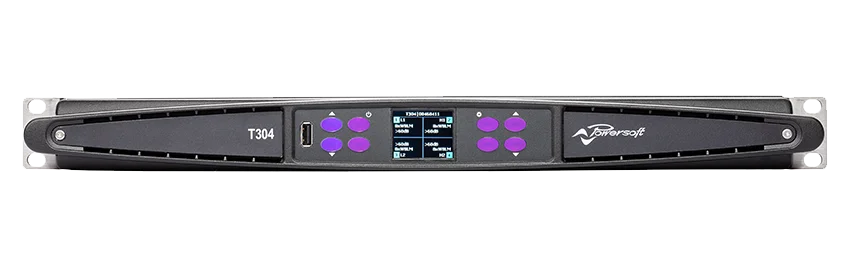

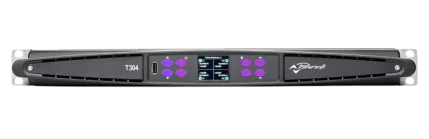

Powersoft T304
Professionelle Vierkanal Touring-Endstufe
Varianten:
T304 DSP+DANTE

4x 750 Watt an 2 Ohm (max. 1200 Watt asym.)
4x 750 Watt an 4 Ohm (max. 1200 Watt asym.)
4x 750 Watt an 8 Ohm (max. 1200 Watt asym.)

2x 1500 Watt gebrückt an 4 Ohm
2x 1500 Watt gebrückt an 8 Ohm
Maximale Ausgangsspannung 145 Vpeak
Maximale Ausgangsstrom 50 Apeak

19" / 1 HE, Tiefe 405mm, Gewicht: 7,1 kg
4 Jahre Garantie

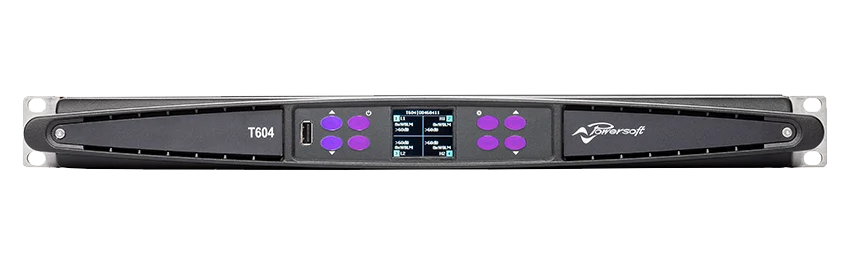

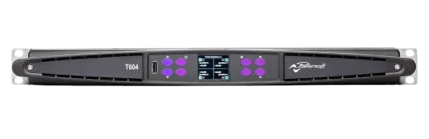

Powersoft T604
Professionelle Vierkanal Touring-Endstufe
Varianten:
T604 DSP+DANTE

4x 1500 Watt an 2 Ohm (max. 1600 Watt asym.)
4x 1500 Watt an 4 Ohm (max. 2100 Watt asym.)
4x 1250 Watt an 8 Ohm (max. 1250 Watt asym.)

2x 3000 Watt gebrückt an 4 Ohm
2x 3000 Watt gebrückt an 8 Ohm
Maximale Ausgangsspannung 145 Vpeak
Maximale Ausgangsstrom 50 Apeak

19" / 1 HE, Tiefe 405mm, Gewicht: 7,5 kg
4 Jahre Garantie
